Reliable Normally Open Proximity Switch With Multiple Protection Function

Name: Reliable Normally Open Proximity Switch With Multiple Protection Function
Brand: Zhongde
Price: 1 USD

Model Number : TL-Q5MY1

MOQ : 100

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000only 8day

Place of Origin : China

Brand Name : Zhongde

Certification : CE

Protection level : IP67

Feature : Reliable

Name : Normally Open Proximity Switch

Voltage : AC

Output Method : NPN/PNP

Induction Method : Normally open

Contact Now

Reliable Normally Open Proximity Switch With Multiple Protection Function

Description

We are able to offer Normally Open Proximity Switch that is extensively used in automation and machinery equipment. The provided switch is manufactured from the supreme quality components and sophisticated techniques. To avoid any flaw, the switch offered by us is rigorously examined by our diligent quality controllers against numerous quality measures.

Parameter

Lag distance	Less than 10% of the detection distance
Detecting objects	Magnetic metal (detection distance is reduced when non-magnetic metal)
voltage	DC : DC 12~24 (6~36V) pulse (p-p) below 10%
voltage	AC : AC 110~220V (36~250V) 50/60Hz
Current consumption	N.P : ≤13mA
	D : ≤0.8mA
	A : ≤1.7mA
Control output	N.P : ≤300mA
	D : ≤200mA
	A : ≤400mA
Loop protection	N.P.D : reverse connection protection, surge absorption, load short circuit protection
Loop protection	A : surge absorption
Ambient temperature	-30~+65°C (no icing, no condensation)
Ambient humidity	-35~95%RH
Insulation resistance	50MΩ or more (DC500 megohmmeter) (between charging part and housing)
Withstand voltage	AC 1000V 50/60HZ 1min (between charging part and Housing)
Temperature effect	-30~+65°C: detection distance error ±15% at +23°C
Temperature effect	-25~+60°C: detection distance error ±10% at +23°C
Voltage effect	6-36V (90-250V) : ±15% of detection distance error
Voltage effect	10-30V (220V) : ±10% of detection distance error
Protection level	IP67 (IEC)
Material	Housing: ABS
Material	Detection surface: ABS

Note:Please read the "Precautions" of the product manual before use.

Details

Two-wire

NPN/PNP

Normally open

Features

Reverse power protection, short circuit protection, can be directly connected to the PLC

Economical and simple operation

Long life and high reliability, strong environmental resistance

Red LED reality can detect sensor working status

IP67 protection structure (IEC)

Product Tags:

normally open proximity sensor

pnp no proximity sensor

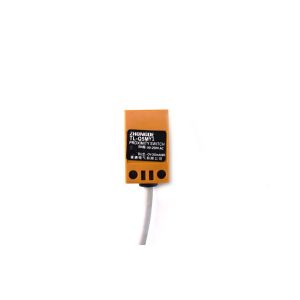

Buy cheap Reliable Normally Open Proximity Switch With Multiple Protection Function product
